Lithium Battery Pack Bms Pcb Tester 24 Series Bms Testing System 18650 Lithium Battery Tester
Machine features
The PBTS series multi-function BMS board testing machine is mainly used to testing the BMS board specifications is within the parameters which declared by the BMS board supplier, so as to provide a set of testing standards for the staff. It is suitable for power battery BMS board manufacturers and power battery pack manufacturers.
The test functions are:
1) overcharge protection voltage
2) overcharge recovery voltage
3) over discharge protection voltage
4) over discharge recovery voltage
5) over discharge current protection
6) short circuit protection performance test
7) charging current protection
9) equalization opening voltage
10) equalization real-time current
11) BMS board total consumption
12) single section self consumption current
13) overcharge protection delay
14) over discharge protection delay
15) overcurrent protection delay
16) internal resistance
Technical parameter
| No. | Item | Parameter | Accuracy |
| 1 | Power supply | AC220V/50Hz | |
| 2 | Power | 800W | |
| 3 | Max overcurrent | 60A or 120A optional | |
| 4 | Test series | 1-24 series configurable | |
| 5 | Voltage reference | Ternary Battery:3.8V | |
| LFP Battery: 3V |
| 6 | Overcharge/Overdischarge protection voltage | 0.5-5V | ±5mV |
| 7 | Overcharge/Overdischarge voltage | 0.5-5V | ±5mV |
| 8 | Overcharge protection current | 0-40A | ±0.1A |
| 9 | Overdischarge protection current | 0-120A | ±0.1A |
| 10 | Equilibrium open voltage | 0.5-5V | ±5mV |
| 11 | Equilibrium real-time current | 0-200mA | ±1mA |
| 12 | Overcurrent protection delay | 0-15S | ±1mS |
| 13 | Overcharge/Overdischarge protection delay | 0-20S | ±1mS |
| 14 | Single section self consuming power | 0-500uA | ±1uA |
| 15 | Internal loop resistance | 0-500mΩ | ±1mΩ |
| 16 | Short circuit protection (above 6 series) | 0-9999us | ±1us |
| 17 | Size | 450W*440L*230Hmm | |
| 18 | Weight | 20kg | |
Battery pack assembly line machines
Our Company
Shenzhen Onetop Technology Co Ltd , is a manufacturer which combines R&D and marketing ,we have professional R&D team as well as proficient stuff ,and has been specializing in researching and producing high quality lithium battery machine for 10 years . Our main products ranges from 18650 battery pack assembly machine ,Power Battery PACK assembly machines ,Power Bank Assembly machine,Mobile Phone Battery assembly Machines,Battery safety test equipment,Injection molding machine,Molds, Molding materials, machine parts, etc
We keep in place with the word ,we adopt lastest technology and design ,our Onetop series battery machine stands out in the same industry area ,they are of national advanced technologycal level and have been identified by experts from Shenzhen Science & Technology and Information Bureau .Up to now ,we have obtained many inventions patents ,practical new patents ,and own independent intellectual property rights
.
With the increasing development ,We have created two workshops to manufacture battery machines and injection molding machines
Through our efforts, the Automatic Battery PACK Assembly machines are now widely used in Mobile phone,Power bank,Laptop,Electric bikes,Electric vehicle,solar street lights,Solar energy storage,Banks,LED devices,Health Equipments ect,the low-pressure injection molding machines are now widely used in PCBs, sensor products, wiring harnesses, medical electronic products, etc. In addition, OEM/ODM services can be provided to customers worldwide. Our products enjoy high quality and guarantee all-weather after-sales service, thus winning our 70% market share.we look forward to cooperation with the customers all over the world .
Our Main product
1. Automatic Battery PACK Assembly Line
2. Power Battery PACK machines
3. Power Bank Assembly Line
4. Battery safe test machine
5. Injection Molding Machine
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days
*Customized Machine: 30-35 days
Our Service
● Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
● After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Contact us
Ms.Tina (Sales manager)
Cel/Wechat/whatsapp:+86-13543252590
Email: tina@battery-machines.com
Add:No.410,Donghuan road,Shajing,Bao'an district,Shenzhen,China
|
|

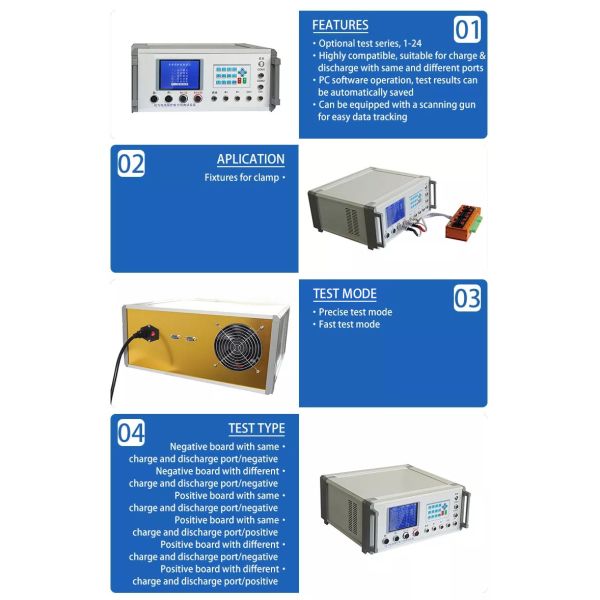

High Accuracy 18650 Power Battery 1-24 Series Bms Testing Machine Bms Tester Images
|
